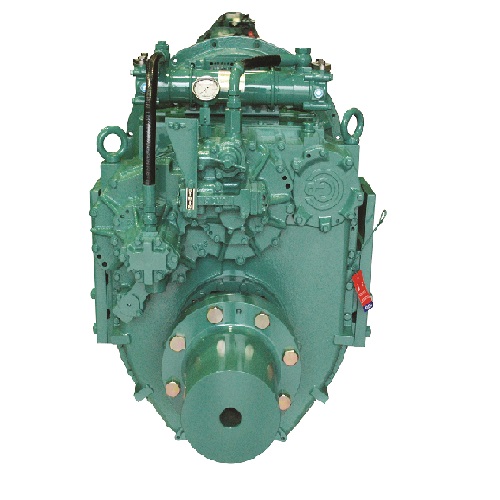

Vertical offset, direct mount marine transmission.

Available for Pleasure, Light, Medium and Continuous Duty applications.

Case hardened and precisely ground gear teeth for long life and smooth running .
Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead .
B/W connection integrated with casing .
Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable .
Suitable for twin engine installations (same torque capacity in ahead or astern mode. Reduction Ratios in ahead or astern are very close.) .

Standard Equipment

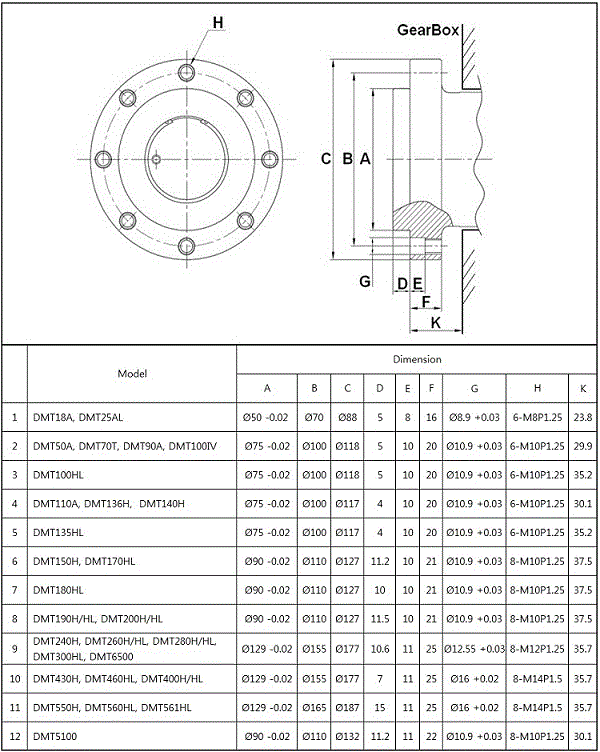

SAE #0, and SAE #1 bell housings .

Engine-matched Rubber Block type coupling .
Oil cooler Assembly
Mounting brackets(Plate Type for welding) .

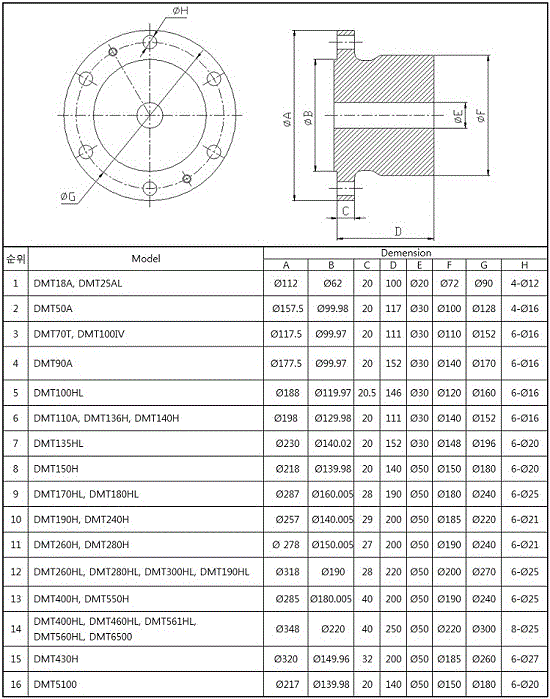

Propeller shaft flange .

Control cable bracket and Clamp parts for connection of the push-pull cable

Option

CENTA Flexible Coupling.

Trolling valve for slow speed navigation.

Electric shifting valve.
